TMK FLY 01 - black
In stock
Při nákupu nad 100 € doprava zdarma.FREE GIFT WITH PURCHASE – PREMIUM CARRIER BAG WORTH 35 EUR
FREE SHIPPING
-
Foldable design – folded dimensions (in bag): 75 × 30 × 26 cm
-
European homologation E8 + City Crash Test approved
-
Fully foldable / collapsible
-
Suitable for all types of e-bikes – including full-suspension and low-step-through frames
-
Total load capacity: 30 kg
-
Fits tires up to 2.85" wide
-

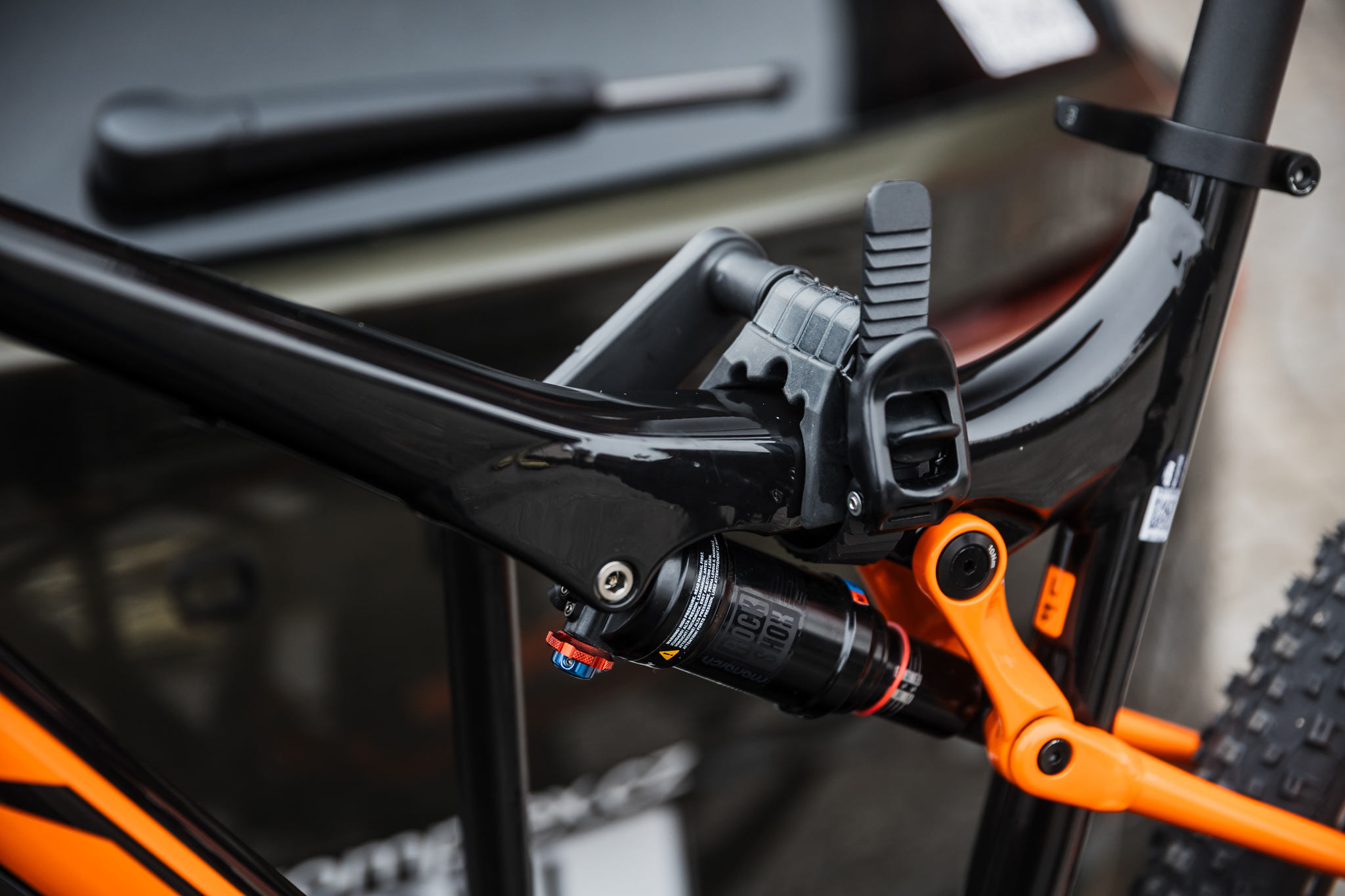

Safe for carbon frames – frame secured in soft rubber holders
-
Compatible with wheelbase up to 1,300 mm
-
Sliding wheel holders for easy adjustment
-
Designed and manufactured in the Czech Republic
Other specifications:
-
Number of bikes: 1
-
Maximum load: 30 kg
-
Weight of the carrier: 9 kg

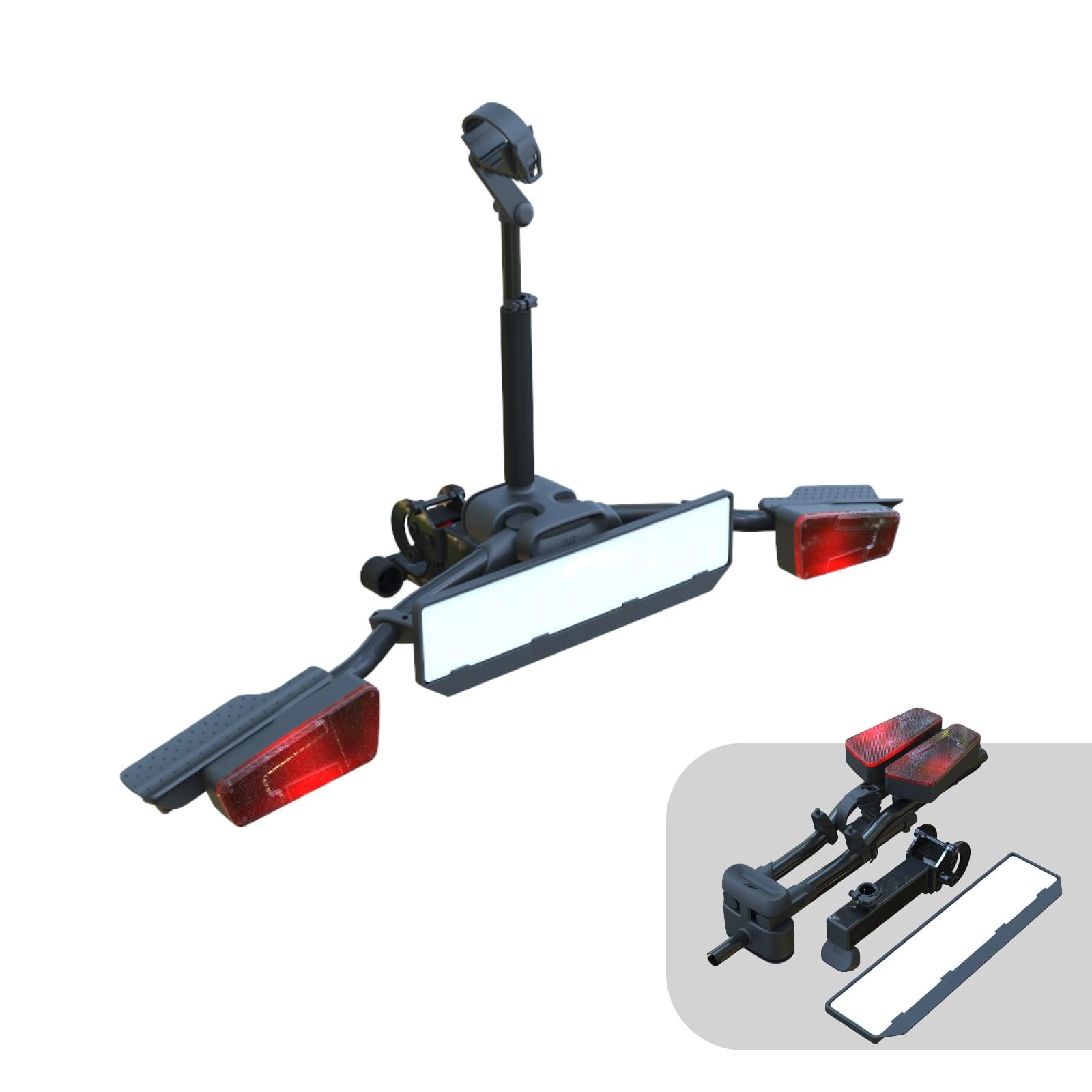

Package includes:
-
Bike carrier (central profile + segment with lights)
-
Basic security
-
Transport bag
-
License plate bracket / base plate
-
User manual
Why are TMK bike carriers better than other carriers?
Easy to use for women and active seniors
Best-in-class
storability
Instead of lifting 20 kg at once, you only lift 4 kg
How does TMK FLY 01 work?
#1 Attach the main body to the tow ball
Simply unlock the mechanism, slide it onto the tow ball, and push it firmly downward.
Once correctly fitted, the carrier body should sit at approximately a 5-degree upward angle. If the angle is steeper, remove the body and refit it, checking the installation again.
#2 Attach the segment with lights and bike
Snap the light segment into the counterpart in the carrier body and secure the wheel. The grooved locking system prevents the segment from rotating unintentionally.
See how to use the bike carrier correctly!
#3 Fit the license plate, connect the plug, and go
Once the bike is properly fixed, attach the license plate, plug in the 13-pin connector, and you're ready to drive. A strong spring presses against the license plate holder, so you don’t need to worry about stability.
You can also use our quick-release license plate holder for even greater convenience.
#4 Dismount from tow ball
Simply unlock the mechanism and lift the central profile upwards. You can then remove it from the tow ball.
Always hold the profile firmly with both hands during the entire process.
User friendly and easy use of TMK FLY 02
Principles of using TMK FLY 01 and TMK FLY 02 are the same
Tested by Svět motorů
Documents to download
Still having questions?
Contact us! We will reply withing 24 hours.
